Health Matrix

<< Click to Display Table of Contents >>

Navigation:  Web Reports > Pages > Dashboard Pages >

Health Matrix

The Health Matrix is a new and unique way to display the health of a large network, while at the same time using as little screen real estate as possible.



clip0584

clip0289



Usage

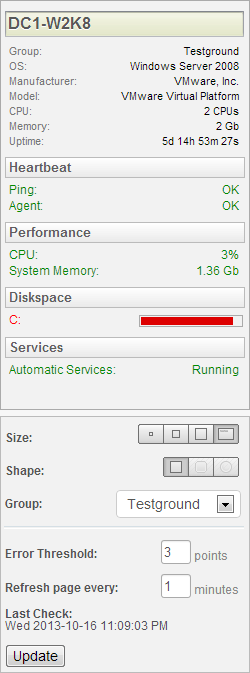

To view detailed information about a host, simply click the tile and review the details on the left pane. Any items which are currently in a warning state will be displayed in red.



Tile size and shape, error threshold and the refresh intervals can all be configured in the left pane. Error threshold and refresh interval changes need to be confirmed by pressing the "Update" button.



Output can be filtered to a specific group with the "Group" drop-down.



Tile Colors

The overall health status of a monitored host is indicated by the color of its square / rectangle / circle (depending on your configuration). The health of a host is calculated using a point system. Any monitored item (e.g. service, disk space, performance counter) which is in a warning state will incur one point. Hosts with no (0) points will have a green status, whereas hosts with 1 point (configurable) will have an orange (warning) status. Hosts with 2 or more (configurable) points will have be in an Error state, with a red color.



Status

Points

Description

info_20

0

All monitored components are OK

warning_24

1

One monitored component is NOT OK

stop_24

2+

More than one component is NOT OK

Description is based on the default error threshold of "2"



Icons

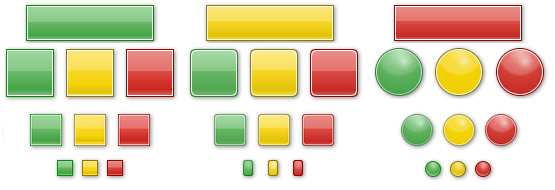

health-matrix

Both the icon / tile shape as well as size used for hosts are configurable. You can choose between a rectangle, square, a square with rounded edges and a circle. With the exception of the rectangle shape, all shapes are available in small, medium and large sizes.



The rectangle shape is the only shape which displays the host name within the icon. With all other shapes, the host name is retrieved by hovering over the icon with the mouse.



clip0582

The icon shape and size can be changed using the controls on the lower left side of the screen. Please note this is a global settings, affecting all health matrix reports.



Examples

clip0580

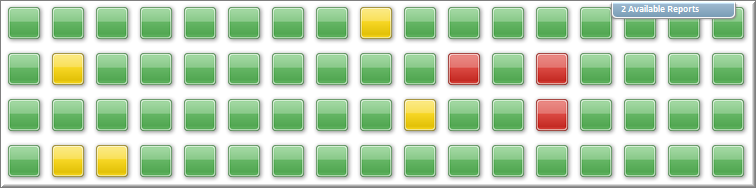

Health matrix using medium square size, displaying 68 computers while only requiring approximately 756 x 188 pixels



clip0581

68 computers, here only requiring approximately 397 x 96 pixels
